amazings/plats crossover mod

Carver Speaker Discussions and Questions
angelod307
SILVER-7 TUBE AMP
Posts: 2652
Joined: Sat Jun 06, 2009 10:56 pm
Location: manning, sc

Re: amazings/plats crossover mod

Post by angelod307 » Thu Oct 21, 2010 11:03 pm

when you get those caps, be sure to get some poly's....you will love yourself for it...
CarverFest: I just go for the arts and crafts

User avatar
mbskeam
(pair of) SILVER-7t's
Posts: 2147
Joined: Mon Jan 25, 2010 2:32 am
Location: Woodinville Wa

Re: amazings/plats crossover mod

Post by mbskeam » Thu Nov 04, 2010 11:35 pm

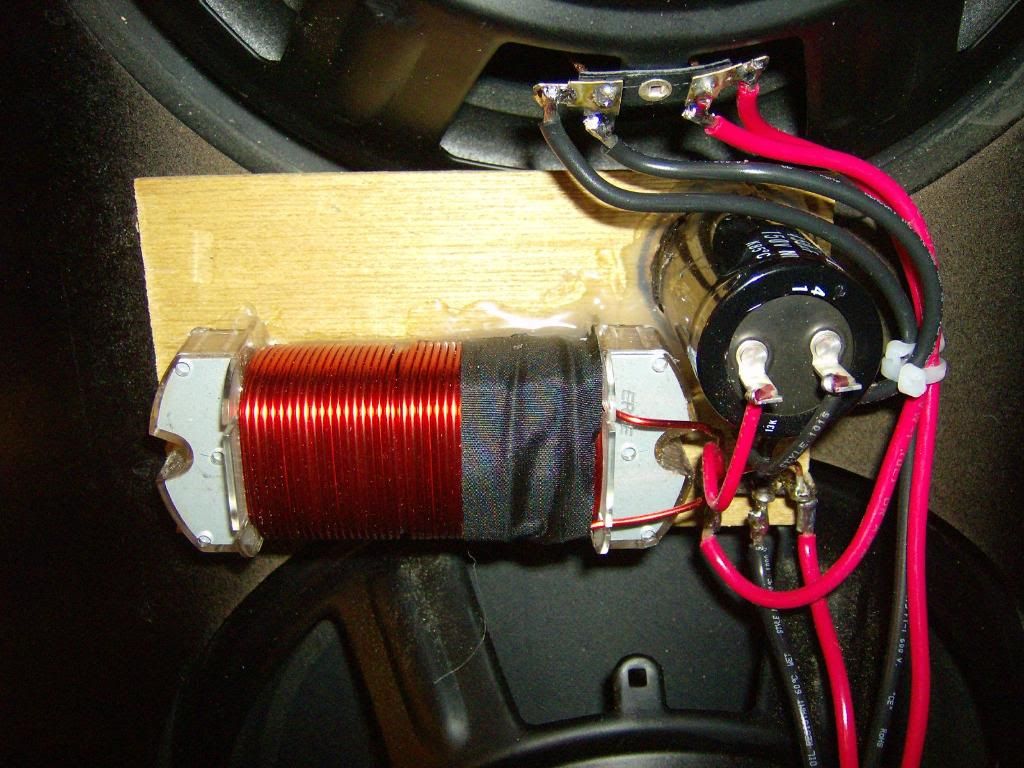

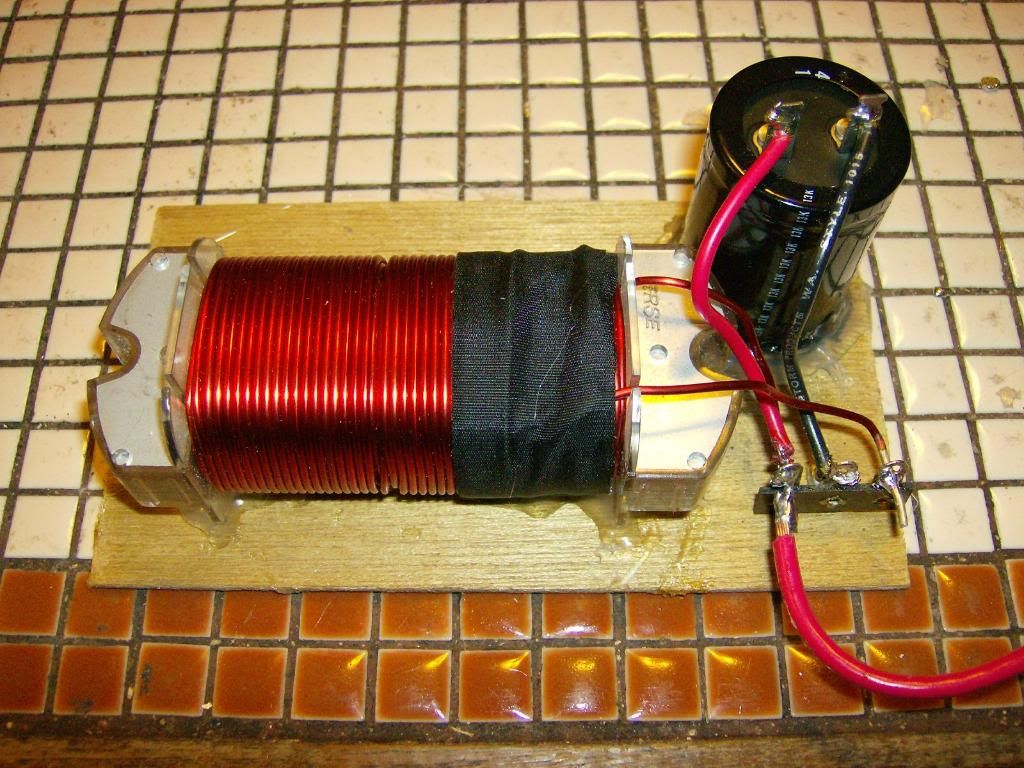

got the woofer half done......


bad coil on the right....
got a weee bit hot.....


more to follow..... :D
Mbskeam

SILVER 7's
Amazing Line Source
2 SVS PB16 SUBS
#1 BLACK BEAUTY's made by the man, the myth, the legend Bob Carver
CARVER: TFM-75, TFM-45(3), SD/A-490T
SUNFIRE: Tube pre
WTL Amadeus GTA+DV DRT XV-1t
2 sets of ALS'3, set of SILVERS, set of PLATS
AUDIOCONTROL: phase coupled activator
KENWOOD: BASIC M2a (2)

“Youth ages, immaturity is outgrown, ignorance can be educated, and drunkenness sobered, but stupid lasts forever.”
― Aristophanes

The only thing I'll feel......will be the RECOIL
Necronomicon Ex-Mortis....... Klaatu Barada Nikkto
"We should seek the greatest value of our action"

User avatar
mbskeam
(pair of) SILVER-7t's
Posts: 2147
Joined: Mon Jan 25, 2010 2:32 am
Location: Woodinville Wa

Re: amazings/plats crossover mod

Post by mbskeam » Wed Nov 10, 2010 12:29 am

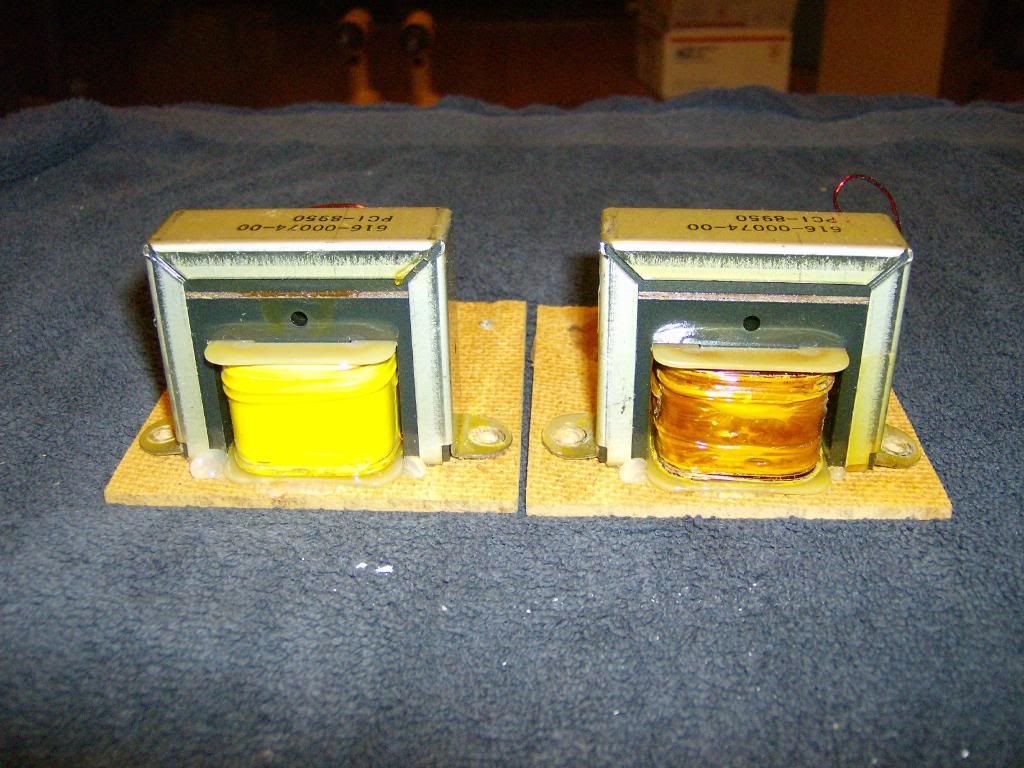

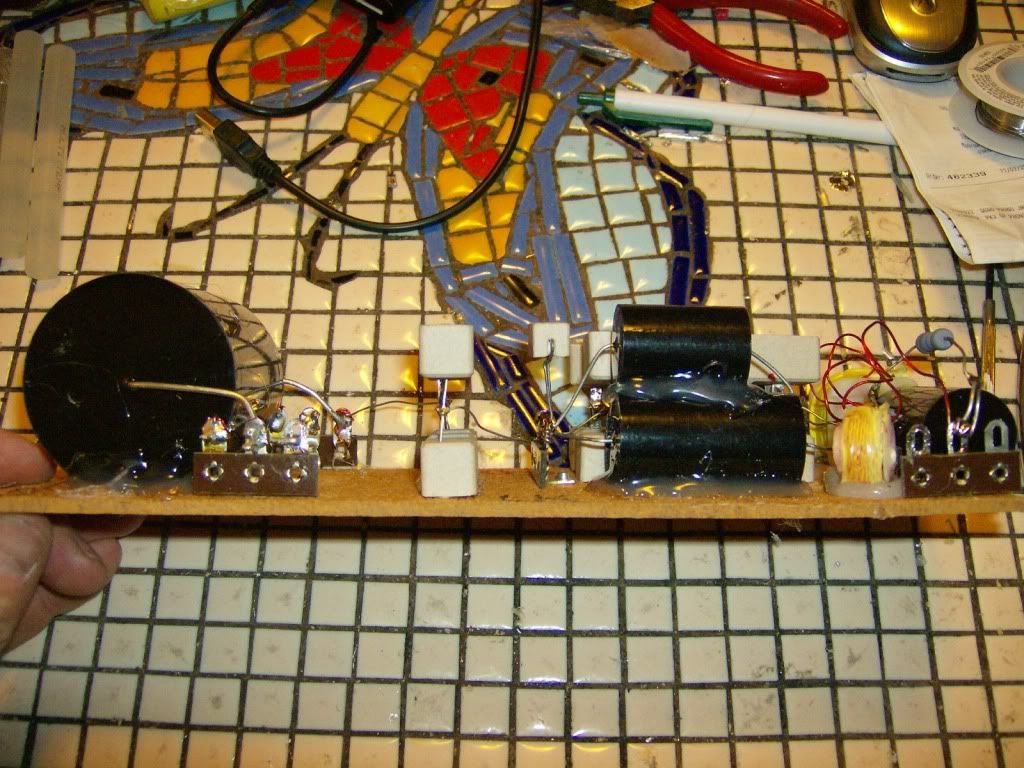

got one of the ribbon xovers done tonight....



1 more to go..... \:D/ \:D/ \:D/
Mbskeam

SILVER 7's
Amazing Line Source
2 SVS PB16 SUBS
#1 BLACK BEAUTY's made by the man, the myth, the legend Bob Carver
CARVER: TFM-75, TFM-45(3), SD/A-490T
SUNFIRE: Tube pre
WTL Amadeus GTA+DV DRT XV-1t
2 sets of ALS'3, set of SILVERS, set of PLATS
AUDIOCONTROL: phase coupled activator
KENWOOD: BASIC M2a (2)

“Youth ages, immaturity is outgrown, ignorance can be educated, and drunkenness sobered, but stupid lasts forever.”
― Aristophanes

The only thing I'll feel......will be the RECOIL
Necronomicon Ex-Mortis....... Klaatu Barada Nikkto
"We should seek the greatest value of our action"

User avatar
Zoot Horn
SILVER-7 TUBE AMP
Posts: 3550
Joined: Thu Nov 15, 2007 7:26 pm
Location: 4th Tower of Inverness

Re: amazings/plats crossover mod

Post by Zoot Horn » Wed Nov 10, 2010 7:17 am

nice work Mike,, what are the values of those large cement type resistors?

User avatar
mbskeam
(pair of) SILVER-7t's
Posts: 2147
Joined: Mon Jan 25, 2010 2:32 am
Location: Woodinville Wa

Re: amazings/plats crossover mod

Post by mbskeam » Wed Nov 10, 2010 8:47 pm


got the other one done, and will put it in.......soon :-s
Mbskeam

SILVER 7's
Amazing Line Source
2 SVS PB16 SUBS
#1 BLACK BEAUTY's made by the man, the myth, the legend Bob Carver
CARVER: TFM-75, TFM-45(3), SD/A-490T
SUNFIRE: Tube pre
WTL Amadeus GTA+DV DRT XV-1t
2 sets of ALS'3, set of SILVERS, set of PLATS
AUDIOCONTROL: phase coupled activator
KENWOOD: BASIC M2a (2)

“Youth ages, immaturity is outgrown, ignorance can be educated, and drunkenness sobered, but stupid lasts forever.”
― Aristophanes

The only thing I'll feel......will be the RECOIL
Necronomicon Ex-Mortis....... Klaatu Barada Nikkto
"We should seek the greatest value of our action"

weitrhino
SILVER-7t
Posts: 1076
Joined: Thu Aug 17, 2006 10:40 am
Location: North Carolina

Re: amazings/plats crossover mod

Post by weitrhino » Wed Nov 10, 2010 10:37 pm

Looking real good...hope the effort pays off for you.

User avatar
mbskeam
(pair of) SILVER-7t's
Posts: 2147
Joined: Mon Jan 25, 2010 2:32 am
Location: Woodinville Wa

Re: amazings/plats crossover mod

Post by mbskeam » Wed Nov 10, 2010 10:44 pm

well I hope so also.......
but, when you have no life like me, what else have I to do...... :lol: :lol: :lol: :lol: :lol:
aahhh the life of a single guy........ :D :D :D :D :D :D
Mbskeam

SILVER 7's
Amazing Line Source
2 SVS PB16 SUBS
#1 BLACK BEAUTY's made by the man, the myth, the legend Bob Carver
CARVER: TFM-75, TFM-45(3), SD/A-490T
SUNFIRE: Tube pre
WTL Amadeus GTA+DV DRT XV-1t
2 sets of ALS'3, set of SILVERS, set of PLATS
AUDIOCONTROL: phase coupled activator
KENWOOD: BASIC M2a (2)

“Youth ages, immaturity is outgrown, ignorance can be educated, and drunkenness sobered, but stupid lasts forever.”
― Aristophanes

The only thing I'll feel......will be the RECOIL
Necronomicon Ex-Mortis....... Klaatu Barada Nikkto
"We should seek the greatest value of our action"

User avatar
Toy Maker
Puppet Master
Posts: 6796
Joined: Wed Oct 08, 2003 1:26 am

Re: amazings/plats crossover mod

Post by Toy Maker » Thu Nov 11, 2010 12:00 am

mbskeam wrote:aahhh the life of a single guy........ :D :D :D :D :D :D

BOY DO I KNOW WHAT YOU MEAN !!!!
I'm loving it \:D/ \:D/ \:D/ \:D/

angelod307
SILVER-7 TUBE AMP
Posts: 2652
Joined: Sat Jun 06, 2009 10:56 pm
Location: manning, sc

Re: amazings/plats crossover mod

Post by angelod307 » Thu Nov 11, 2010 12:06 am

Toy Maker wrote:
mbskeam wrote:aahhh the life of a single guy........ :D :D :D :D :D :D

BOY DO I KNOW WHAT YOU MEAN !!!!
I'm loving it \:D/ \:D/ \:D/ \:D/
what does that mean? no woman in your life now?
CarverFest: I just go for the arts and crafts

User avatar
mbskeam
(pair of) SILVER-7t's
Posts: 2147
Joined: Mon Jan 25, 2010 2:32 am
Location: Woodinville Wa

Re: amazings/plats crossover mod

Post by mbskeam » Thu Nov 11, 2010 12:37 am

why yes..... \:D/ \:D/ \:D/ \:D/ \:D/

being single means no one to get in the way of my hobby's.....

I find that most women (not all)have this sort of "sense of entitlement"
what this means is .......
"I have the pussy, therefore I make ALL the rules"
I am sick of this crap......
oh and a drunken girlfriend is not the way to go also..... ](*,) ](*,) ](*,) #-o #-o :rolleyes: :rolleyes:

therefore I am single......
and could not be happier..... :D :D :D :D :D :D :D
Mbskeam

SILVER 7's
Amazing Line Source
2 SVS PB16 SUBS
#1 BLACK BEAUTY's made by the man, the myth, the legend Bob Carver
CARVER: TFM-75, TFM-45(3), SD/A-490T
SUNFIRE: Tube pre
WTL Amadeus GTA+DV DRT XV-1t
2 sets of ALS'3, set of SILVERS, set of PLATS
AUDIOCONTROL: phase coupled activator
KENWOOD: BASIC M2a (2)

“Youth ages, immaturity is outgrown, ignorance can be educated, and drunkenness sobered, but stupid lasts forever.”
― Aristophanes

The only thing I'll feel......will be the RECOIL
Necronomicon Ex-Mortis....... Klaatu Barada Nikkto
"We should seek the greatest value of our action"

User avatar
Zoot Horn
SILVER-7 TUBE AMP
Posts: 3550
Joined: Thu Nov 15, 2007 7:26 pm
Location: 4th Tower of Inverness

Re: amazings/plats crossover mod

Post by Zoot Horn » Thu Nov 11, 2010 7:30 am

nice work sir,, just a question,,are you replacing the resistors as well? I noticed the values,,thanks for posting that.

User avatar
mbskeam
(pair of) SILVER-7t's
Posts: 2147
Joined: Mon Jan 25, 2010 2:32 am
Location: Woodinville Wa

Re: amazings/plats crossover mod

Post by mbskeam » Thu Nov 11, 2010 9:14 am

no, not at this time.
Mbskeam

SILVER 7's
Amazing Line Source
2 SVS PB16 SUBS
#1 BLACK BEAUTY's made by the man, the myth, the legend Bob Carver
CARVER: TFM-75, TFM-45(3), SD/A-490T
SUNFIRE: Tube pre
WTL Amadeus GTA+DV DRT XV-1t
2 sets of ALS'3, set of SILVERS, set of PLATS
AUDIOCONTROL: phase coupled activator
KENWOOD: BASIC M2a (2)

“Youth ages, immaturity is outgrown, ignorance can be educated, and drunkenness sobered, but stupid lasts forever.”
― Aristophanes

The only thing I'll feel......will be the RECOIL
Necronomicon Ex-Mortis....... Klaatu Barada Nikkto
"We should seek the greatest value of our action"

User avatar
mbskeam
(pair of) SILVER-7t's
Posts: 2147
Joined: Mon Jan 25, 2010 2:32 am
Location: Woodinville Wa

Re: amazings/plats crossover mod

Post by mbskeam » Fri Nov 12, 2010 12:07 am

DONE......

Well as I sit here and listen, they sound good.
the bass has more snap to it, might be the 12ga wire, but more likely its the new subs.
the ribbons have a bit more mellow sound than the al3's
still not sure on the phase of these, ribbons to woofers, I will have to flip the leads on the ribbons to see if the sound gets better or worse.
these things will need a bit of power to make them sing, have a 45 on them now, still have to talk to Rita and see what the test points should read on the 75.....
one project down....... \:D/ \:D/ \:D/ \:D/ \:D/
Mbskeam

SILVER 7's
Amazing Line Source
2 SVS PB16 SUBS
#1 BLACK BEAUTY's made by the man, the myth, the legend Bob Carver
CARVER: TFM-75, TFM-45(3), SD/A-490T
SUNFIRE: Tube pre
WTL Amadeus GTA+DV DRT XV-1t
2 sets of ALS'3, set of SILVERS, set of PLATS
AUDIOCONTROL: phase coupled activator
KENWOOD: BASIC M2a (2)

“Youth ages, immaturity is outgrown, ignorance can be educated, and drunkenness sobered, but stupid lasts forever.”
― Aristophanes

The only thing I'll feel......will be the RECOIL
Necronomicon Ex-Mortis....... Klaatu Barada Nikkto
"We should seek the greatest value of our action"

angelod307
SILVER-7 TUBE AMP
Posts: 2652
Joined: Sat Jun 06, 2009 10:56 pm
Location: manning, sc

Re: amazings/plats crossover mod

Post by angelod307 » Fri Nov 12, 2010 12:28 am

very nice. a test disc that has a phase test, like the one i have that say's "in phase" and the sound is centered and focused in the middle, then it goes "out of phase" and the sound stage falls with the voice coming from the speakers position. very effective. all else fails, send me your address in a pm and i will mail you a copy of the disc.
CarverFest: I just go for the arts and crafts

User avatar
mbskeam
(pair of) SILVER-7t's
Posts: 2147
Joined: Mon Jan 25, 2010 2:32 am
Location: Woodinville Wa

Re: amazings/plats crossover mod

Post by mbskeam » Mon Nov 29, 2010 1:42 am

for today's project I switched the phase of the ribbons.
It does sound better this way, not a lot, just better, the bass seams a bit more fuller, and the highs zinggyer....is this a word? oh well it is now :-"
with the xover only a 1st order, maybe this is why it did not sound bad, or the ribbons are just more forgiving of being out of phase, not sure.
all this xover stuff is new to me, but its a bunch of fun to play with. :D :D :D :D
now to stop all the crap in my living room from buzzin and vibrating when I play it loud, I guess there are worse things that could happen..... :lol: :lol: :lol: :lol:
Mbskeam

SILVER 7's
Amazing Line Source
2 SVS PB16 SUBS
#1 BLACK BEAUTY's made by the man, the myth, the legend Bob Carver
CARVER: TFM-75, TFM-45(3), SD/A-490T
SUNFIRE: Tube pre
WTL Amadeus GTA+DV DRT XV-1t
2 sets of ALS'3, set of SILVERS, set of PLATS
AUDIOCONTROL: phase coupled activator
KENWOOD: BASIC M2a (2)

“Youth ages, immaturity is outgrown, ignorance can be educated, and drunkenness sobered, but stupid lasts forever.”
― Aristophanes

The only thing I'll feel......will be the RECOIL
Necronomicon Ex-Mortis....... Klaatu Barada Nikkto
"We should seek the greatest value of our action"
