reattaching loose magnets

<<

mbskeam

User avatar

SILVER-7t

Posts: 1984

Joined: Mon Jan 25, 2010 2:32 am

Location: Woodinville Wa

Post Sun Oct 10, 2010 12:04 am

reattaching loose magnets

got some new speakers for my plats.... =P~ =P~ =P~ =P~
when they got here 3 of the magnets had shifted.... :( :( :( :( :( :(
what to do, what to do....... :-k :-k :-k :-k :-k
well I just reglued them back on :) :) :)

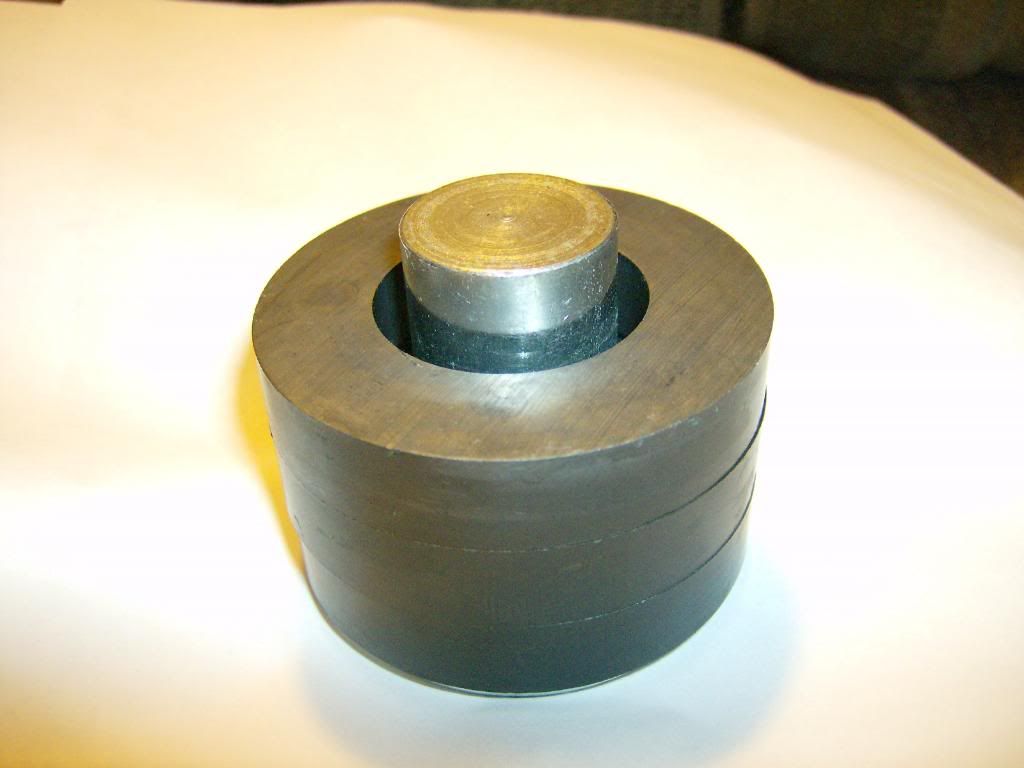

loose magnet


alignment fixture

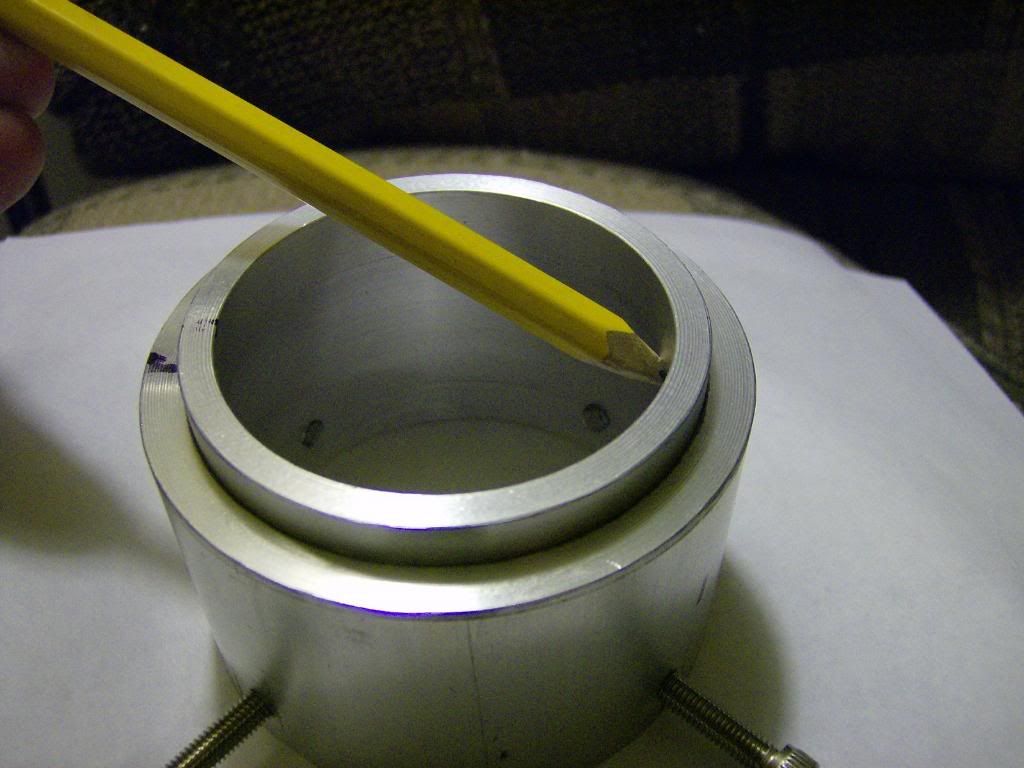

used this lip on the top to center

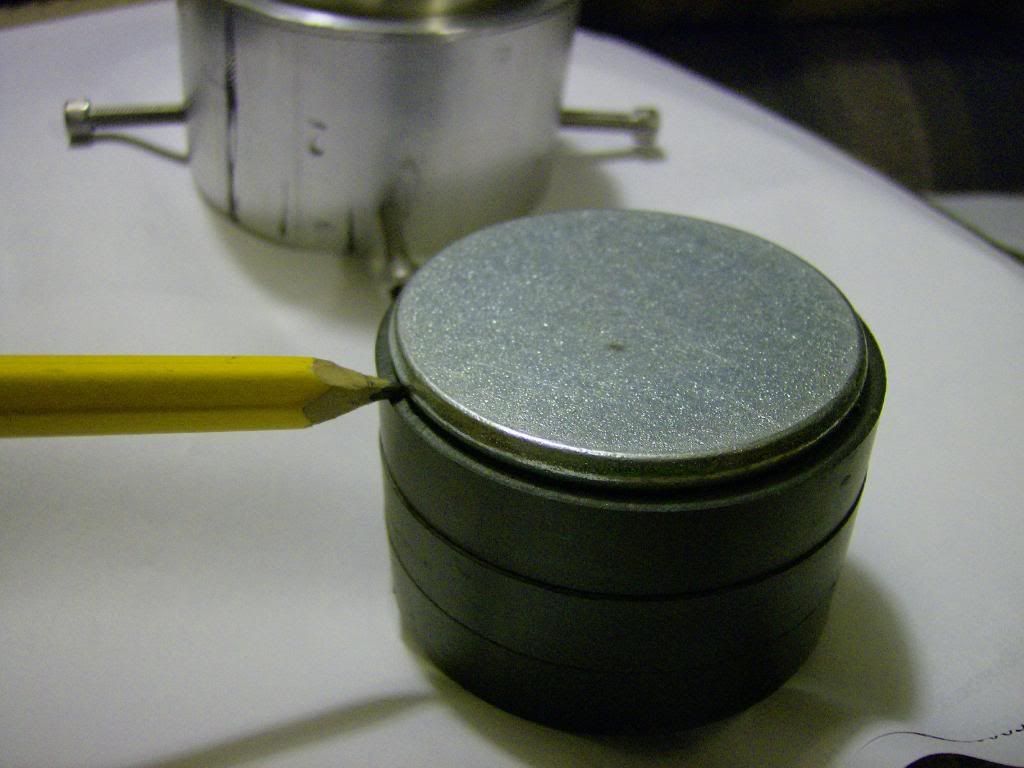

lip on the tool to help center mag

centering jack screws

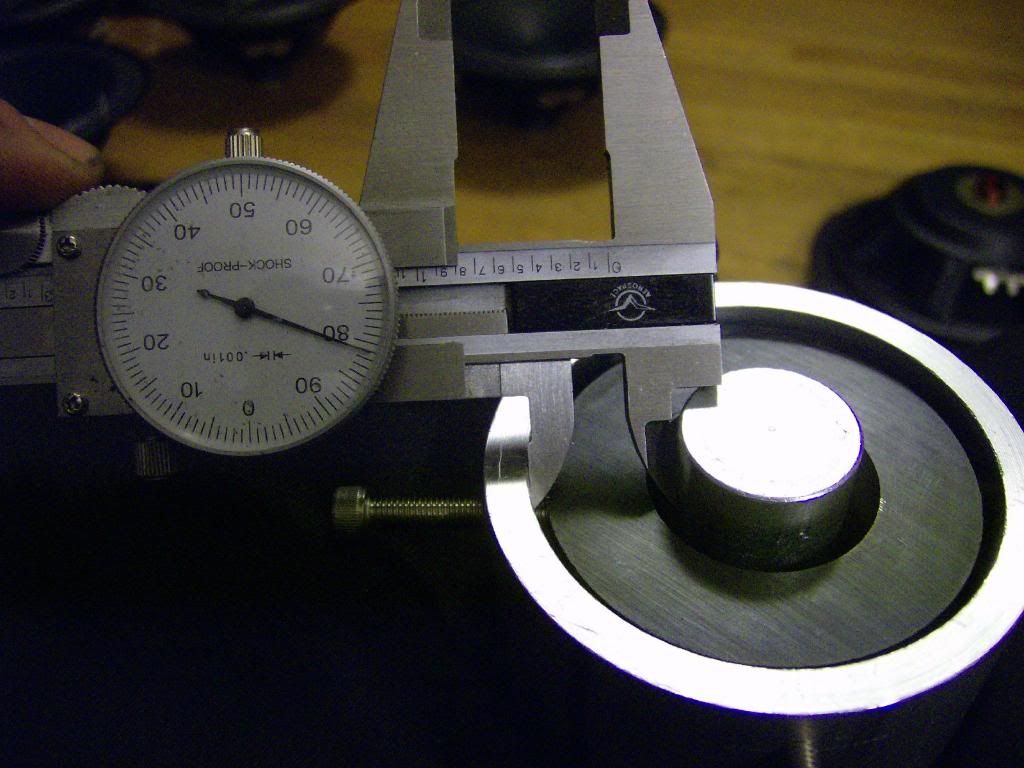

centering up to within a few thou.....

used this ring to index the base of the alignment tool

magnet getting glued in place
I did check the alignment before gluing, this meant I had to install the mag twice, once to check for rub and then to reglue.....

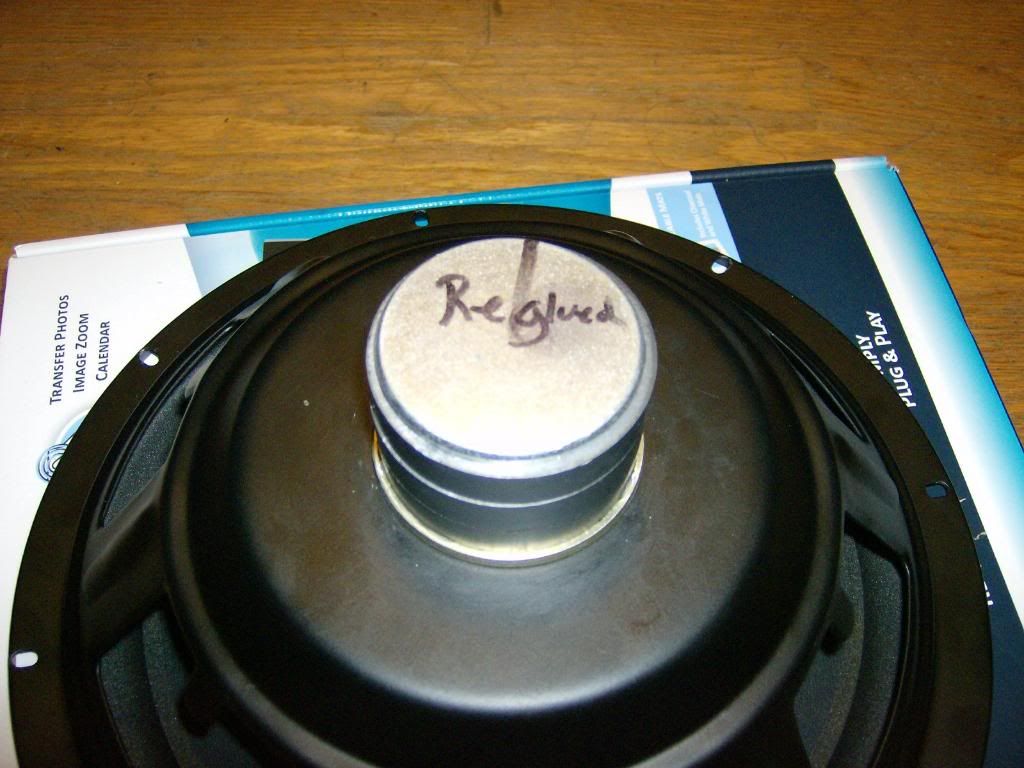

done..... \:D/ \:D/ \:D/ \:D/ \:D/ \:D/ \:D/ \:D/
