Re: inside the tfm 75

Post by TNRabbit » Mon Aug 02, 2010 3:25 am

The TFM-75 has that plug-in with the white, black & red wiring. What is that?

TNRabbit

From FrankieD's lips to your ears: Sunfire - a quiet box of endless power.

Sunfire TG-IV/400~7 Amp
Carver SD/A-360 CDP
Benchmark DAC-1
Sony SACD/DVD-A
Active bi-amp: Ashly XR-1001 & 2 Rane PEQ-15s
Main: HotRodded AL-IIIs
Sub: Klipsch RT-12d
Center: Sunfire CRS-3c
Surround: Sunfire CRS-3 (x 2)

OconeeOrange wrote:"Gary likes to play it 'loud' as do I. His system begs you turn it up until you die"

RIP WIlliam B. Dibble, 1948-2012. I'll miss you my friend.

User avatar
mbskeam
(pair of) SILVER-7t's
Posts: 2185
Joined: Mon Jan 25, 2010 2:32 am
Location: Woodinville Wa

Re: inside the tfm 75

Post by mbskeam » Mon Aug 02, 2010 3:36 am

meter board
Mbskeam

SILVER 7's
Amazing Line Source
2 SVS PB16 SUBS
#1 BLACK BEAUTY's made by the man, the myth, the legend Bob Carver
CARVER: TFM-75, TFM-45(3), SD/A-490T
SUNFIRE: Tube pre
WTL Amadeus GTA+DV DRT XV-1t
2 sets of ALS'3, set of SILVERS, set of PLATS
AUDIOCONTROL: phase coupled activator
KENWOOD: BASIC M2a (2)

“Youth ages, immaturity is outgrown, ignorance can be educated, and drunkenness sobered, but stupid lasts forever.”
― Aristophanes

The only thing I'll feel......will be the RECOIL
Necronomicon Ex-Mortis....... Klaatu Barada Nikkto
"We should seek the greatest value of our action"

User avatar
mbskeam
(pair of) SILVER-7t's
Posts: 2185
Joined: Mon Jan 25, 2010 2:32 am
Location: Woodinville Wa

Re: inside the tfm 75

Post by mbskeam » Sun Oct 17, 2010 11:27 pm

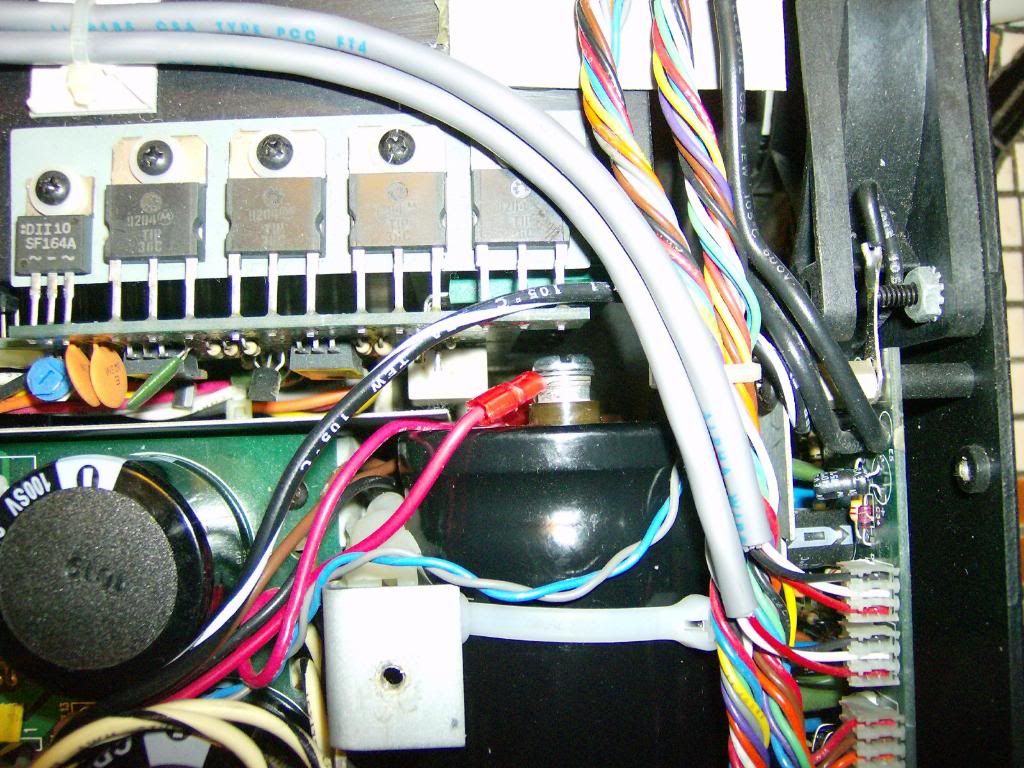

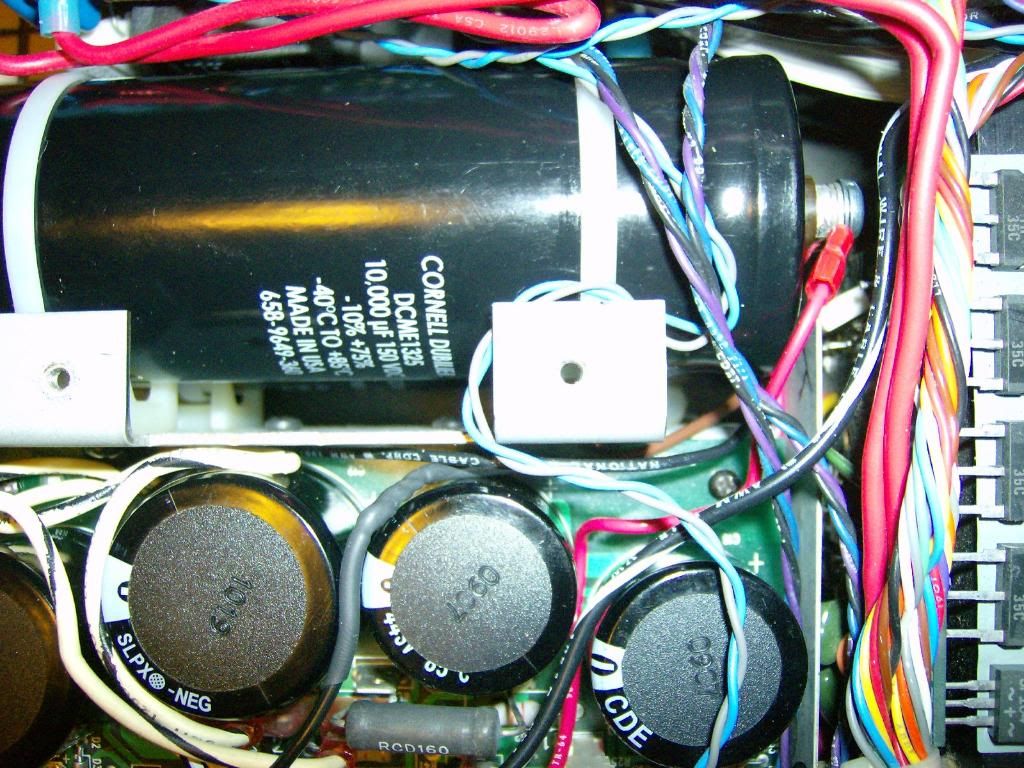

got the 10000uf 150V caps installed today...
did not go as smooth as I had hoped...

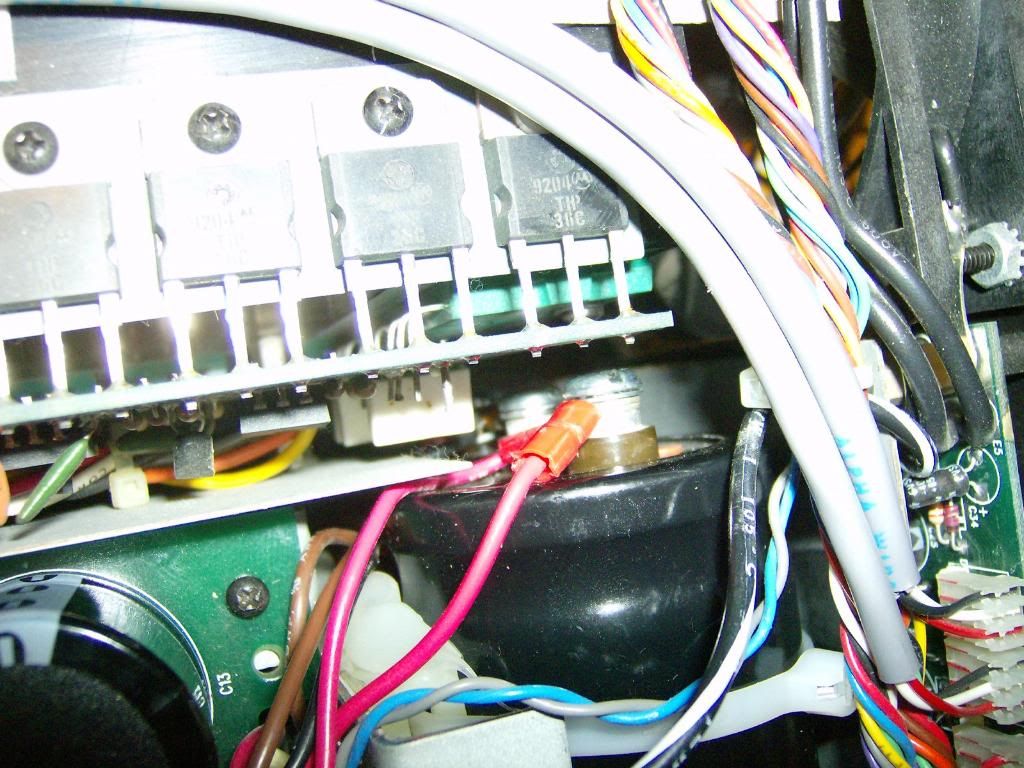

the caps should have been 5-1/8lg not 5-5/8 (add says 5-1/8)...this made for a tight fit, had to flip one set to the inboard, and make 2 wire leads longer to reach the cap hook up points...
set the top rail voltage to 122V, the lower voltages also followed to spec....
still trying to find the voltages for test points 1,2 and 3...
test point 3 is controlled by a pot (R25) on the power supply board, set this to .5v
will have to ask Rita, as I can't find any thing on the web about this....
but the amp powers up, the left ch does not go into protection mode, and the meters do not slam home when it powers up and or off..... \:D/ \:D/ \:D/ \:D/
one more project almost done.... :lol: :lol: :lol: :lol: :lol: :lol:



it's tight
Mbskeam

SILVER 7's
Amazing Line Source
2 SVS PB16 SUBS
#1 BLACK BEAUTY's made by the man, the myth, the legend Bob Carver
CARVER: TFM-75, TFM-45(3), SD/A-490T
SUNFIRE: Tube pre
WTL Amadeus GTA+DV DRT XV-1t
2 sets of ALS'3, set of SILVERS, set of PLATS
AUDIOCONTROL: phase coupled activator
KENWOOD: BASIC M2a (2)

“Youth ages, immaturity is outgrown, ignorance can be educated, and drunkenness sobered, but stupid lasts forever.”
― Aristophanes

The only thing I'll feel......will be the RECOIL
Necronomicon Ex-Mortis....... Klaatu Barada Nikkto
"We should seek the greatest value of our action"

User avatar
falcon377
Newbie 50+
Posts: 65
Joined: Tue Nov 04, 2008 2:10 pm
Location: Pittsburgh, PA.

Re: inside the tfm 75

Post by falcon377 » Mon Oct 18, 2010 2:22 am

Nice work, that sure is a tight fit.

User avatar
engtaz
"TAZ"
Posts: 5414
Joined: Sat Jun 30, 2007 1:43 pm
Location: Tampa, FL

Re: inside the tfm 75

Post by engtaz » Mon Oct 18, 2010 3:38 am

I would put a none conductive shield to prevent possible arching problems. Just a thought since you have a tighter fit.
engtaz


Carver M4.0T in front channels to Caver AL VI's in SACD & 2 Channel setup
C 16, PT 2400, Slim Device, Carver TX-8, 490T and Rega TT w Grado Gold cart in the 2 channel setup
Bogen SRB20 is computer amp
Carver PM-350 donated for youth church use

User avatar
Don
SILVER-7 TUBE AMP
Posts: 2712
Joined: Tue Oct 28, 2008 10:46 am

Re: inside the tfm 75

Post by Don » Mon Oct 18, 2010 7:07 am

Mike,

Awesome job. When finished, take a night shot of those new blue meter lights in the 75.

angelod307
SILVER-7 TUBE AMP
Posts: 2669
Joined: Sat Jun 06, 2009 10:56 pm
Location: manning, sc

Re: inside the tfm 75

Post by angelod307 » Mon Oct 18, 2010 7:14 am

i wonder what they removed all those diodes and resistors? could that be why the 75 has more treble than the 2400. the one that i got at the fest is now in need of some repairs. my friend some how hooked it up in a way that it now has some noise coming in from the fan. did you get a schematic for the 2400 mike?
CarverFest: I just go for the arts and crafts

User avatar
fill35U
M-400t CUBE
Posts: 198
Joined: Thu Feb 20, 2014 8:45 am
Location: East Virginia

Re: inside the tfm 75

Post by fill35U » Fri Dec 19, 2014 4:57 pm

mbskeam wrote:Image
this is the pt2400 amp board

this is the tfm75 amp board


see any thing different..... :-s
While we're doing thread necromancy around here...

Those are *power supply boards*, not amp boards. :)

The missing components on the TFM-75 power boards are where the power sequencing circuitry would be for the PT-1800/2400. And the TFM-75 doesn't have "clipping" LED's, so it doesn't need those drivers on the power boards, either.
Living room system: TGP IV, TX-8r, TD-1400, PT-2400(x6), PM-1.5a(x3), TFM-45(x2), TFM-55, Silver Amazings Mk IV

Spares/projects: C-9, M-400, PM-350(x2), M-1.5t(x2), PT-2400(x2-1/2), PT-1800(x4), TGP I, Architectural True Sub, pm420

User avatar
Robert R
TFM-75
Posts: 914
Joined: Tue Aug 05, 2008 2:05 pm

Re: inside the tfm 75

Post by Robert R » Fri Dec 19, 2014 6:20 pm

You can read PT1800/2400 screened right on the "75" board.
Different parts installed as required, of course And there are different revisions sometimes. But baiscally the same board.

RobertR
"You know what folks? I'm happy."

User avatar
Miko1971
TFM-6cb
Posts: 296
Joined: Wed Nov 26, 2014 7:45 am
Location: Michigan

Re: inside the tfm 75

Post by Miko1971 » Sat Dec 20, 2014 11:53 am


That picture gives the term " Tube Rollin " a whole new meaning!!!

User avatar
WhackJob
M-400t CUBE
Posts: 190
Joined: Thu Jun 02, 2011 6:25 pm
Location: Canada

Re: inside the tfm 75

Post by WhackJob » Sat Dec 20, 2014 3:20 pm

Fill: If there was a firm grasp of the obvious award.....nevermind.

Your a Carver brother, and I love you... but really?

User avatar
fill35U
M-400t CUBE
Posts: 198
Joined: Thu Feb 20, 2014 8:45 am
Location: East Virginia

Re: inside the tfm 75

Post by fill35U » Sat Dec 20, 2014 5:13 pm

WhackJob wrote:Fill: If there was a firm grasp of the obvious award.....nevermind.

Your a Carver brother, and I love you... but really?
My apologies- doh! #-o There's not much I can contribute, so I jump at the opportunities. Who knows, a newbie or new owner might wander across this thread, as I once did. And for the sake of posterity we should endeavor for completeness. Besides, Angelo asked! :D

I'll go back to grabbing my obvious firmly now...
Living room system: TGP IV, TX-8r, TD-1400, PT-2400(x6), PM-1.5a(x3), TFM-45(x2), TFM-55, Silver Amazings Mk IV

Spares/projects: C-9, M-400, PM-350(x2), M-1.5t(x2), PT-2400(x2-1/2), PT-1800(x4), TGP I, Architectural True Sub, pm420

User avatar
pmat
Newbie 50+
Posts: 65
Joined: Thu Dec 11, 2014 2:06 pm

Re: inside the tfm 75

Post by pmat » Sat Dec 20, 2014 9:32 pm

"Call me Daddy when you back that amp up"
Power is the aphrodisiac of audio

User avatar
radioeng2
SILVER-7 TUBE AMP
Posts: 2701
Joined: Fri Jan 26, 2007 7:06 pm
Location: E TN

Re: inside the tfm 75

Post by radioeng2 » Sat Dec 20, 2014 9:43 pm

=; You guys are making me laugh so hard.... :lol:
I was there "At the Fest!" Hope you were too!

User avatar
MRHP
SILVER-7t
Posts: 1349
Joined: Wed Jan 18, 2012 2:36 pm
Location: Buzzard Creek Ky

Re: inside the tfm 75

Post by MRHP » Sat Dec 20, 2014 10:18 pm

Here's a little more "75" porn....since its my favorite Carver amp of all time.
TFM-75 serial #0001
PT-2400 serial #0001
Baby Black Magic serial #0001
Baby Black Magic serial #0002
Cherry/260wpc Mono Blocks
Lightstar Reference
Sunfire Series II 625x2
Carver 490t
OPPO-103
Lucas Labs CF-14
Sunfire Tube pre
DENON DP-62L TT
DUAL CS 5000 TT
DQ-20's
Tesla CF-15 speakers
Douglas Cables
